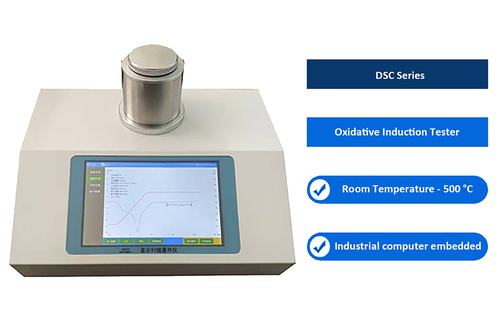

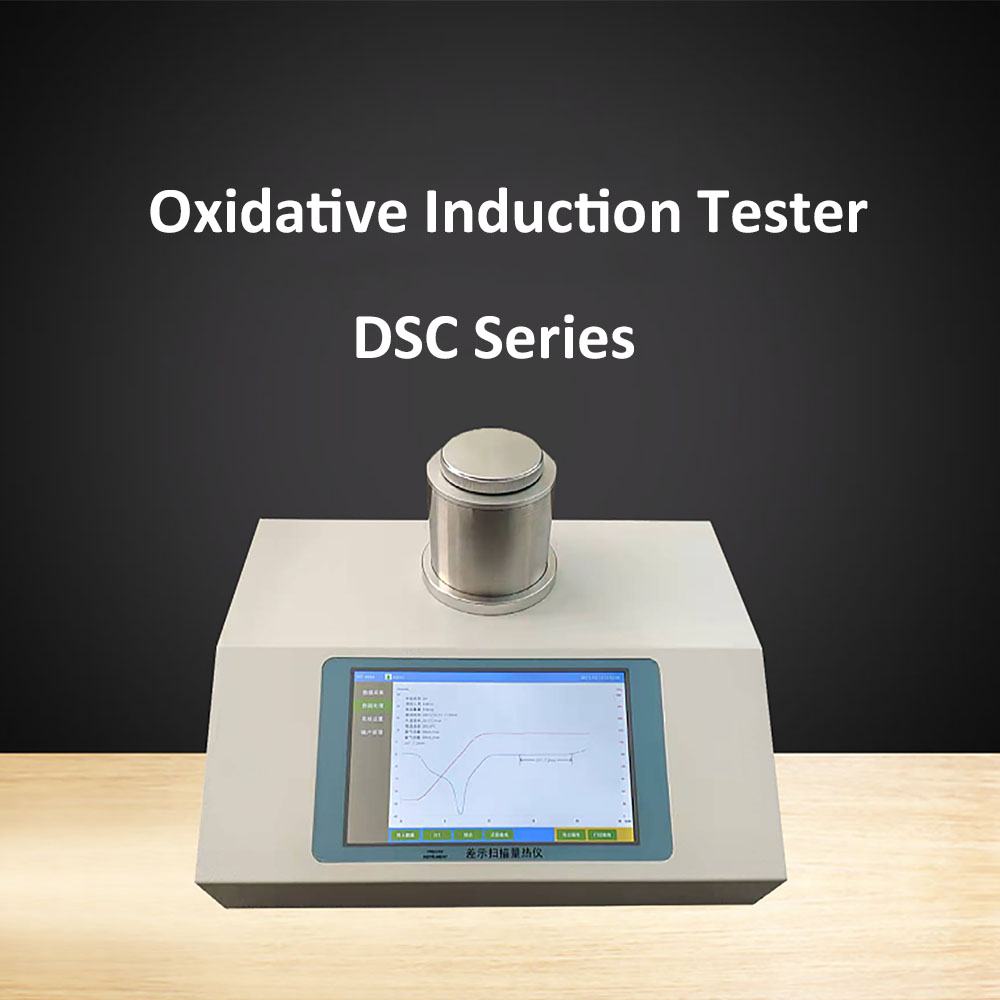

DSC-500A / DSC-500AZ(OIT)
DSC for Oxidation Induction Time (OIT) Test
Detail
Main Features: simple operation, accurate data
- Built-in 10.1-inch industrial microcomputer, records temperature and differential heat curves, automatically calculates initial melting and final melting temperatures.
- Dual temperature probes ensure high repeatability of sample temperature measurement.
- Can connect to a printer to print melting point reports, supports exporting test curves via USB drive.
- Provides PC software, the instrument can be connected to a computer via serial port.
- Supports three-level account settings, with traceability recording and search functions.
- Improved installation process, fully mechanical fixation is used to completely avoid contamination of the differential heat signal by the furnace body or internal components.
Model Selection
DSC-500A: Room Temp - 500°C
DSC-500AZ: Room Temp - 500°C, DC Power Supply, More Accurate Data
Parameters
| DSC Range | 0 ~ ± 500mW |
|---|---|
| Heating Rate | 0.1 ~ 80°C/min |
| Temp Resolution | 0.01°C |
| Temp Accuracy | ± 0.1°C |
| Temp Repeatability | ± 0.1°C |
| Control Method | Full-process automatic control |
| Power Supply | AC 220V |
| Parameter Calibration | Equipped with standard reference materials, supports one-click automatic calibration function |
Overview
This instrument is the first of its kind in China, specifically designed for Oxidation Induction Time (OIT) testing.
It features an embedded 10.1-inch Android industrial computer, eliminating the need for an external PC.

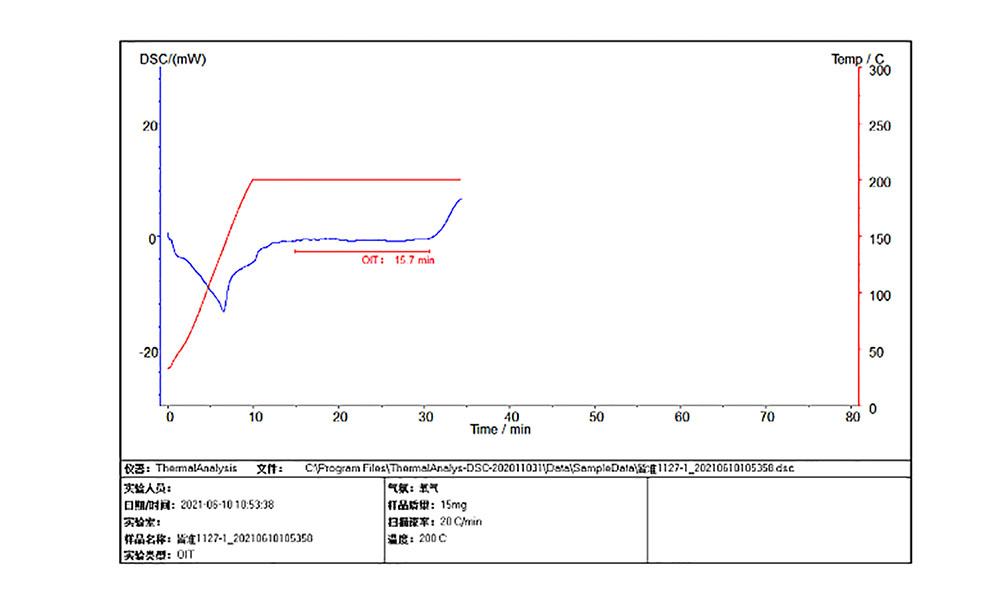

The system enables one-button operation for testing both OIT and melting point, automatically generating OIT spectrograms and supporting direct connection to a printer for report and graph output.
Upon completion of the automatic OIT test, the instrument issues a beep alert, ensuring a fully unattended process that is both simple and efficient.
It complies with a comprehensive range of standards, including
- GB/T 2951.42-2008
- GB/T 15065-2009
- GB/T 17391-1998
- GB/T 19466-2009
- IEC 60811-4-2:2004
- GB/T 19466.6-2009
